| Control | Job handling capacity | Tube Sheet OD | Thickness | BTA Size | Job Weight | Number of machines |
|---|---|---|---|---|---|---|
| Fanuc oi-MF Series | X- Axis Travel 3meters Y-Axis travel 2.5 meter | 3 meters (3000 mm) | 800 mm (Z- Axis Travel 1000 mm) | Ø16.12mm, Ø19.25 mm, Ø25.25 mm, Ø25.65 mm, Ø 32.08 mm | 15 MT | 1nos |
x
- Call Us for help!
- +91 8369106849
- Mail Us
- sales@pipelinecorporation.in

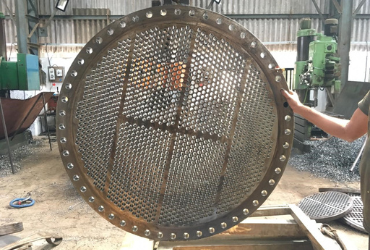

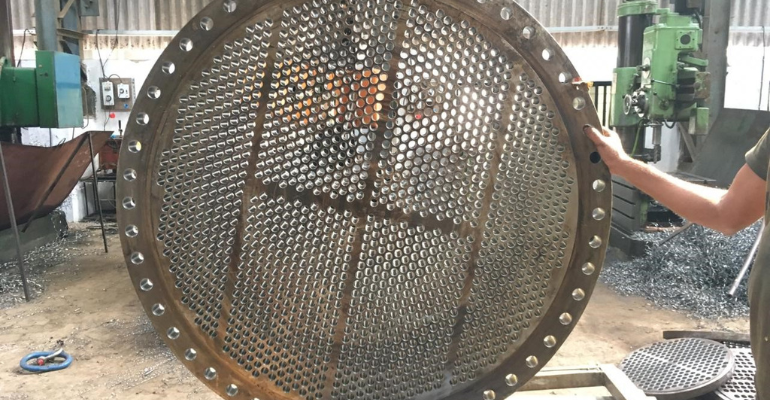

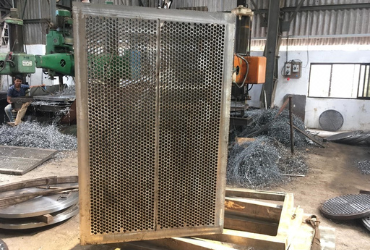

Tube Sheet Drilling
Tube Sheet Drilling
PIPE LINE CORPORATION is one point solution for Oil & Gas Industries. We are having In house facilities for Tubes Sheet Drilling, Vaporizer Tower Internal, etc.
Our Drilling Capacity
Machinery Details
1. CNC DEEP HOLEs DRILLING CUM HD MACHINE (BTA GUN DRILL)
2. RD HMT (DRILLING MACHINE RM 65)
| Control | Job handling capacity | Drilling Hole Range | Number of machines |
|---|---|---|---|
| Manual | Arm 2 meters, Swing- 3.6 meters | Ø 6 mm to Ø 100 mm | 3 nos |
3. RD HMT (DRILLING MACHINE RM 62)
| Control | Job handling capacity | Drilling Hole Range | Number of machines |
|---|---|---|---|
| Manual | Arm 1.2 meters, Swing- 2 meters | Ø 6 mm to Ø 75 mm | 1 nos |
4. RD HMT (DRILLING MACHINE RM 62)
| Control | Job handling capacity | Drilling Hole Range | Number of machines |
|---|---|---|---|
| Manual | Arm 1 meters, Swing- 1.5 meters | Ø 6 mm to Ø 50 mm | 1 nos |
